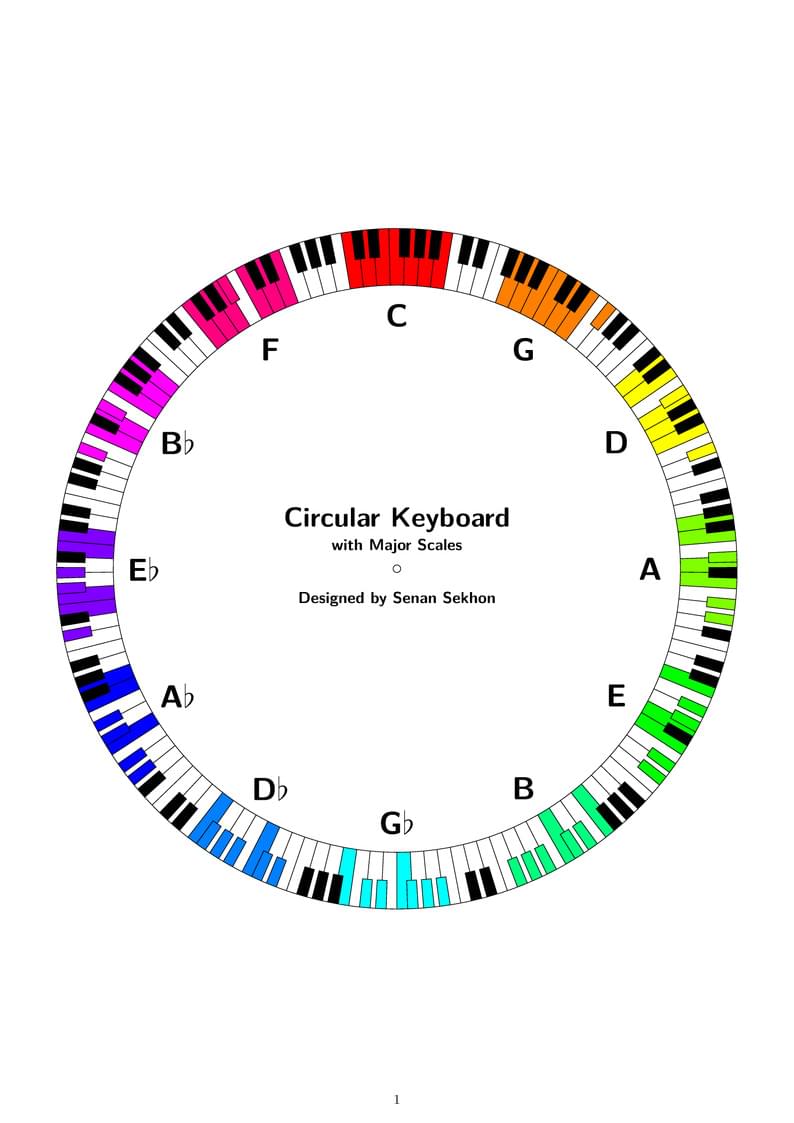

Circular Keyboard
Author:
Senan Sekhon
Last Updated:
3 years ago
License:
Creative Commons CC BY 4.0
Abstract:
Circular Keyboard with Major Scales
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
Circular Keyboard with Major Scales
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
\documentclass[10pt]{extarticle}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
%\usepackage[dvipsnames]{xcolor}
\usepackage[a4paper,top=0.5in,bottom=0.2in,left=0.5in,right=0.5in,footskip=0.3in,includefoot]{geometry}
%\usepackage[most]{tcolorbox}
\usepackage{tikz}
%Colors from https://simple.wikipedia.org/wiki/Color_wheel#The_12_major_color_wheel_colors_color_comparison_chart
\definecolor{Ccol}{HTML}{FF0000} %Red
\definecolor{Gcol}{HTML}{FF7F00} %Orange
\definecolor{Dcol}{HTML}{FFFF00} %Yellow
\definecolor{Acol}{HTML}{7FFF00} %Chartreuse Green
\definecolor{Ecol}{HTML}{00FF00} %Green
\definecolor{Bcol}{HTML}{00FF7F} %Spring Green
\definecolor{Gbcol}{HTML}{00FFFF} %Cyan
\definecolor{Dbcol}{HTML}{007FFF} %Azure
\definecolor{Abcol}{HTML}{0000FF} %Blue
\definecolor{Ebcol}{HTML}{7F00FF} %Violet
\definecolor{Bbcol}{HTML}{FF00FF} %Magenta
\definecolor{Fcol}{HTML}{FF007F} %Rose
\newcommand{\whites}[2][red]{ %fill individual white key
\fill[#1] ({\sr-360/133*#2}:\wa) arc({\sr-360/133*#2}:{\sr-360/133*(#2+1)}:\wa)--({\sr-360/133*(#2+1)}:\wc) arc({\sr-360/133*(#2+1)}:{\sr-360/133*#2}:\wc)--cycle; %fill the key
}
\newcommand{\blacks}[2][red]{ %fill individual black key
\fill[#1] ({\sr-360/133*(#2-1/3)}:\wb) arc({\sr-360/133*(#2-1/3)}:{\sr-360/133*(#2+1/3)}:\wb)--({\sr-360/133*(#2+1/3)}:\wc) arc({\sr-360/133*(#2+1/3)}:{\sr-360/133*(#2-1/3)}:\wc)--cycle; %fill the key
\draw ({\sr-360/133*(#2-1/3)}:\wc)--({\sr-360/133*(#2-1/3)}:\wb) arc({\sr-360/133*(#2-1/3)}:{\sr-360/133*(#2+1/3)}:\wb)--({\sr-360/133*(#2+1/3)}:\wc); %draw the border around the key
}
%Created by Senan Sekhon
%Created August 13, 2021
\begin{document}
\phantom{.} %invisible . to allow \vfill to work
\vfill %To vertically center the picture
\begin{center}
\begin{tikzpicture}
\def\wa{7.5} %radius at base of white keys
\def\wb{8.25} %radius at base of black keys
\def\wc{9} %radius at top of (white and black) keys
\def\sr{90+180/19} %starting angle
\def\lr{6.7}
% Labels for scales
\begin{scope}[every node/.style={font=\fontsize{24}{24}\sffamily\bfseries}]
\node at (90:\lr) {C};
\node at (60:\lr) {G};
\node at (30:\lr) {D};
\node at (0:\lr) {A};
\node at (-30:\lr) {E};
\node at (-60:\lr) {B};
\node at (-90:\lr) {G$\flat$};
\node at (-120:\lr) {D$\flat$};
\node at (-150:\lr) {A$\flat$};
\node at (180:\lr) {E$\flat$};
\node at (150:\lr) {B$\flat$};
\node at (120:\lr) {F};
\end{scope}
% C major
\foreach \k in {0,1,2,3,4,5,6}
\whites[Ccol]{\k};
% G major
\foreach \k in {11,12,13,14,15,16}
\whites[Gcol]{\k};
\foreach \k in {18}
\blacks[Gcol]{\k};
% D major
\foreach \k in {22,23,25,26,27}
\whites[Dcol]{\k};
\foreach \k in {25,29}
\blacks[Dcol]{\k};
% A major
\foreach \k in {33,34,36,37}
\whites[Acol]{\k};
\foreach \k in {36,39,40}
\blacks[Acol]{\k};
% E major
\foreach \k in {44,47,48}
\whites[Ecol]{\k};
\foreach \k in {46,47,50,51}
\blacks[Ecol]{\k};
% B major
\foreach \k in {55,58}
\whites[Bcol]{\k};
\foreach \k in {57,58,60,61,62}
\blacks[Bcol]{\k};
% G-flat major
\foreach \k in {69,73}
\whites[Gbcol]{\k};
\foreach \k in {67,68,69,71,72}
\blacks[Gbcol]{\k};
% D-flat major
\foreach \k in {79,83}
\whites[Dbcol]{\k};
\foreach \k in {78,79,81,82,83}
\blacks[Dbcol]{\k};
% A-flat major
\foreach \k in {91,94,95}
\whites[Abcol]{\k};
\foreach \k in {89,90,92,93}
\blacks[Abcol]{\k};
% E-flat major
\foreach \k in {100,101,104,105}
\whites[Ebcol]{\k};
\foreach \k in {99,102,103}
\blacks[Ebcol]{\k};
% B-flat major
\foreach \k in {112,113,115,116,117}
\whites[Bbcol]{\k};
\foreach \k in {111,114}
\blacks[Bbcol]{\k};
% F major
\foreach \k in {122,123,124,126,127,128}
\whites[Fcol]{\k};
\foreach \k in {125}
\blacks[Fcol]{\k};
% Fill remaining black keys
\foreach \k in {1,2,4,5,6,8,9,11,12,13,15,16,19,20,22,23,26,27,30,32,33,34,37,41,43,44,48,53,54,55,64,65,74,75,76,85,86,88,95,96,97,100,104,106,107,109,110,113,116,117,118,120,121,123,124,127,128,130,131,132}
\blacks[black]{\k};
\draw (0:0) circle (\wa); %inner circle (base of white keys)
\draw (0:0) circle (\wc); %outer circle (top of white keys)
% Draw borders between white keys
\foreach \k in {0,7,...,126}
{\foreach \l in {\k+1,\k+2,\k+4,\k+5,\k+6}
\draw ({\sr-360/133*(\l)}:\wa)--({\sr-360/133*(\l)}:\wb); %borders between white keys separated by a black key
\foreach \l in {\k,\k+3}
\draw ({\sr-360/133*(\l)}:\wa)--({\sr-360/133*(\l)}:\wc); %borders between white keys not separated by a black key
}
\draw (0:0) circle (0.1); %center hole
%%% Description labels
\node[font=\huge\sffamily\bfseries] at (0,1.3) {Circular Keyboard};
\node[font=\large\sffamily\bfseries] at (0,0.6) {with Major Scales};
\node[font=\large\sffamily\bfseries] at (0,-0.8) {Designed by Senan Sekhon};
\end{tikzpicture}
\end{center}
\vfill %To vertically center the picture
\end{document}
%%% EXTRA CODE, USED FOR PREVIOUS VERSIONS OF THIS FILE
\begin{tikzpicture}
\def\wl{2} %length of white key
\def\ww{0.6} %width of white key
\def\bl{1} %length of black key
\def\bw{0.4} %width of black key
\foreach \i in {0,1,...,6} %white keys
\draw ({\i*\ww},0) rectangle ({(\i+1)*\ww},-\wl);
\foreach \j in {1,2,4,5,6} %black keys
\fill ({\j*\ww-\bw/2},0) rectangle ({\j*\ww+\bw/2},-\bl);
\end{tikzpicture}
\begin{tikzpicture}
\def\n{168} %total number of white keys (MUST be a multiple of 7)
\def\wa{7.5} %radius at base of white keys
\def\wb{8.25} %radius at base of black keys
\def\wc{9} %radius at top of (white and black) keys
\foreach \i in {0,1,...,\number\numexpr\n-1\relax} %white keys
\draw ({90-360/\n*\i}:\wa) arc({90-360/\n*\i}:{90-360/\n*(\i+1)}:\wa)--({90-360/\n*(\i+1)}:\wc) arc({90-360/\n*(\i+1)}:{90-360/\n*\i}:\wc)--cycle;
\foreach \j in {0,7,...,\number\numexpr\n-7\relax}
\foreach \k in {\j+1,\j+2,\j+4,\j+5,\j+6} %black keys
\fill ({90-360/\n*(\k-1/3)}:\wb) arc({90-360/\n*(\k-1/3)}:{90-360/\n*(\k+1/3)}:\wb)--({90-360/\n*(\k+1/3)}:\wc) arc({90-360/\n*(\k+1/3)}:{90-360/\n*(\k-1/3)}:\wc)--cycle;
%% Starting angle set to 90, this can be changed to any angle
\end{tikzpicture}
